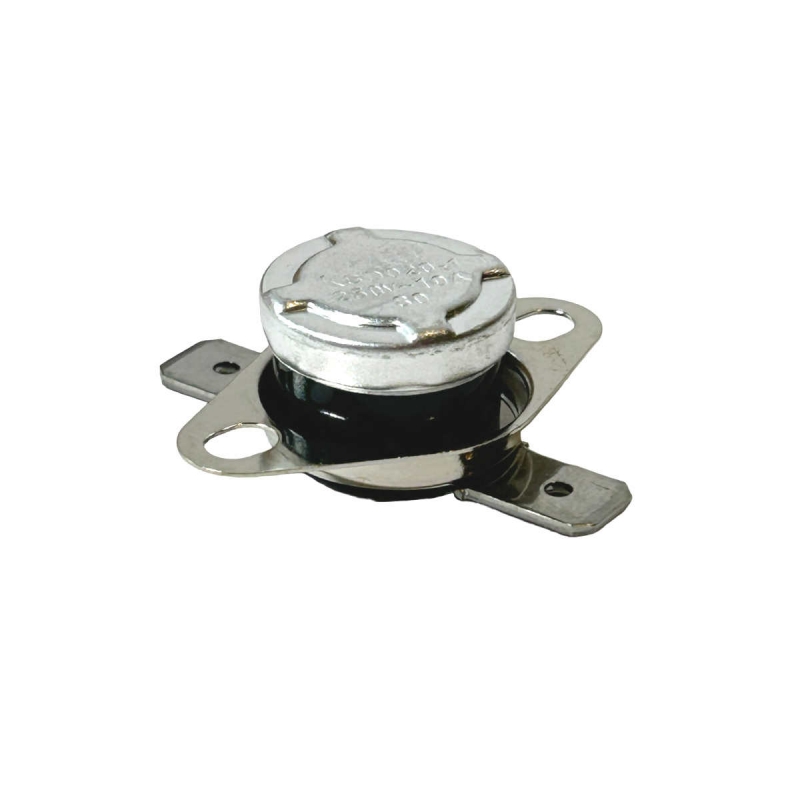

Thermal Cut Out 80ºC N/C - 10A

KSD020-1

New

Bimetallic Switch (Thermal Cut Out) / Surface Mount / 1/2” / Auto Reset / 10A 250V / N/C / Tolerance ±3 Degrees C on Open and ±7 Degrees on Close / Loose Bracket Type BT / 6.3mm Horizontal Term / 80 Degrees C Normally Closed Thermal Switch / Circuit is Open on Temperature Rise at 80 Degrees C / Reset Temperature 60 Degrees / GS Approved / RoHS / Bakelite Body / KSD020-1.

More details

5000 in Stock

£0.75 Ex VAT

£0.90   Tax incl.

Quantity Discounts (see below for price breakdown)

QuantityPriceYou Save
500 £0.31 Up to £220.01
100 £0.35 Up to £40.50
50 £0.38 Up to £18.50
25 £0.43 Up to £8.00

Features

Termination6.3mm QC Terminals
Current Rating10A
Cap MaterialAluminium
Body MaterialBakelite
Fixing Hole Centres24mm

More Info

10 Amp 250Vac rated automatic reset thermal cut out suitable for loads of around 2kw (maximum). For currents over 12A please see our alternative listings. Supplied with a loose bracket that can be rotated for mounting. This thermal cut out is normally closed (NC), meaning that it is normally in the on position. The thermal cut out will open (turn off) on reaching 80 degrees celsius and reset on temperature drop to 60 degrees celsius. This is a 1/2 inch thermal cut out, not to be confused with the higher rated 3/4 inch thermal cut outs more suitable for higher loads typically found in more powerful power showers. Supplied with 6.3mm horizontal quick connect terminals and   enclosed in a bakelite body. Carries GS approval at 10A 250Vac and complies with RoHS.

Prices

1-2425-4950-99100-499500 +
£0.75£0.43£0.38£0.35£0.31
