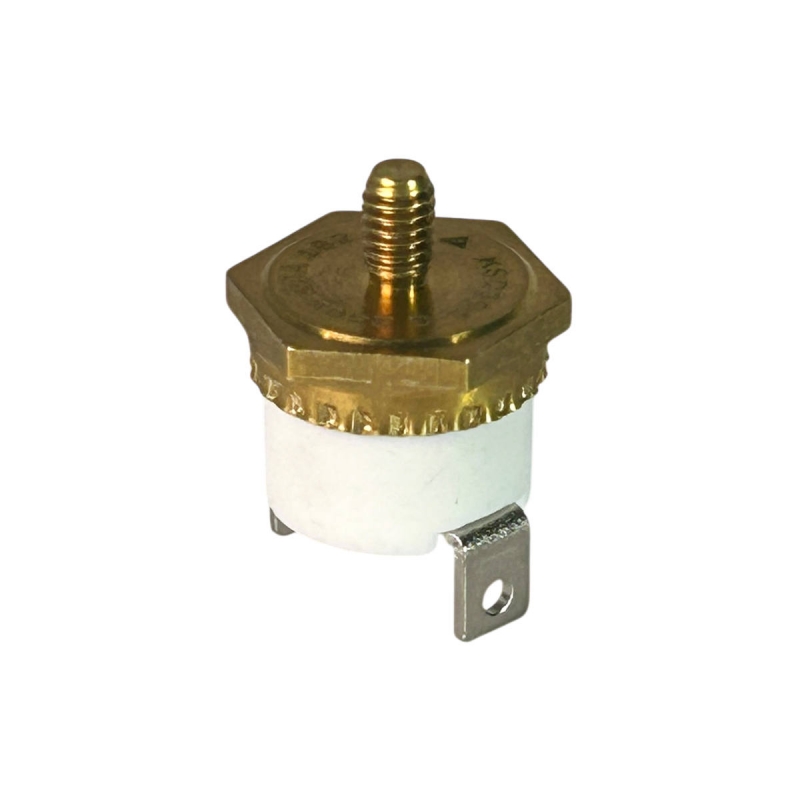

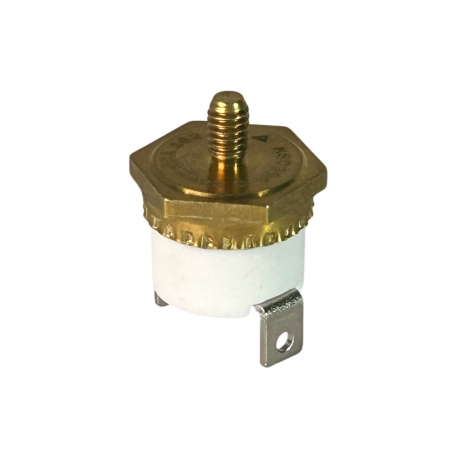

Thermostat 182ºC N/C Hex Nut M4 Thread
KSD301A-182LA-R
New
Bimetallic Switch (Thermal Cut Out) / Surface Mount / 1/2” / Auto Reset / 10A 250V / N/C / ±5 Degrees C on Open and ±9 Degrees on Close / Hex Nut and M4 Threaded Fixing / 5mm Vertical Term / 182 Degrees C Normally Closed Thermal Switch / Circuit is Open on Temperature Rise at 182 Degrees C / Reset Temperature 165 Deg / TUV & UL Approved / RoHS / Ceramic Body / KSD301-18.2/10LA63-G.
Currently out of stock, back in stock soon.
Quantity Discounts (see below for price breakdown)
| Quantity | Price | You Save |
|---|---|---|
| 50 | £3.53 | Up to £73.50 |
| 25 | £3.98 | Up to £25.50 |
Features
| Current Rating | 10A |
| Cap Material | Brass |
| Body Material | Ceramic |
| Contact Resistance | Less Than 50 m Ohm |
| Series | KSD301-G |
More Info
10 Amp 250Vac rated automatic reset thermal cut out suitable for loads of around 2.2kw (maximum). Supplied with an M4 threaded shaft for fitting. This thermal cut out is normally closed (NC), meaning that it is normally in the on position. The thermal cut out will open (turn off) on reaching 182 degrees celsius and reset on temperature drop to 165 degrees celsius. This is a 1/2 inch thermal cut out, not to be confused with the higher rated 3/4 inch thermal cut outs more suitable for higher loads typically found in more powerful power showers. Supplied with 5mm vertical quick connect terminals and enclosed in a ceramic body. Carries TUV and UL approvals at 10A 250Vac complies with RoHS.
Suitable for a range of voltages; consult with the sales office for more information
Prices
| 1-24 | 25-49 | 50 + |
|---|---|---|
| £5.00 | £3.98 | £3.53 |
