Interrupteur de Sécurité du Véhicule 200A

ARL-A701S

Neuf

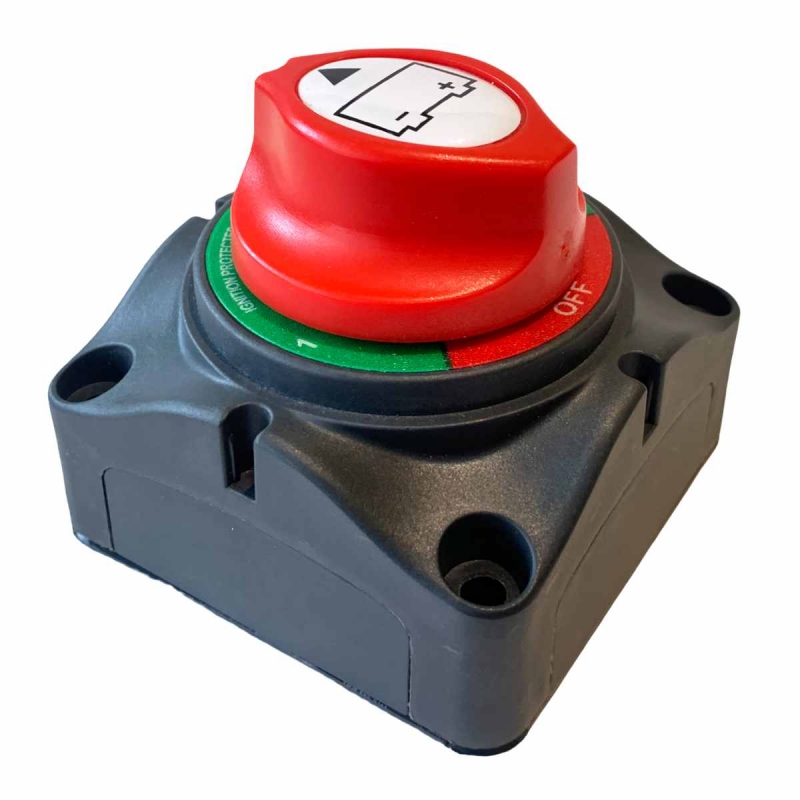

Heavy duty marine changeover battery isolator switch with screw and clamp termination. Removable side and bottom break out panels for easy installation and mounting. Rated at 200A 12-50V DC continuous current and 1,000A 12-50V DC cranking current (intermittent 300A). Switching positions on 1, on 2, on 1 & 2 & off. CE approved. Waterproof to IP54.

Plus de détails

21 articles

£14.75 Ex VAT

£17.70   Tax incl.

Ajouter à ma liste

Volume discounts

QuantityPriceYou Save
25 £13.13 Up to £40.49
5 £13.75 Up to £5.00

Data sheet

Voltage50V
Current Rating200A 12-50V DC Continuous
IP RatingIP65

More info

A high quality battery isolator switch for camper van, motor home, car or marine use. This battery isolator switch is designed to cut off the power to the battery quickly in the event of an emergency or to ensure no unexpected power draw from the battery during vehicle storage. This particular isolator switch has 3 connection posts so this can be used to switch between two batteries or to combine the loads of both batteries. Supplied with 4 x 40mm x M5 hex bolts and nuts. RoHS compliant and carrying CE approval.



Actuator NOT removable on this model.



Footprint size is 69mm x 69mm with 4 x mounting hole centres of 55mm.

Termination : M10 Nut and Stud

Break Out Panels : 4

Prix

1-45-2425 +
£14.75£13.75£13.13
