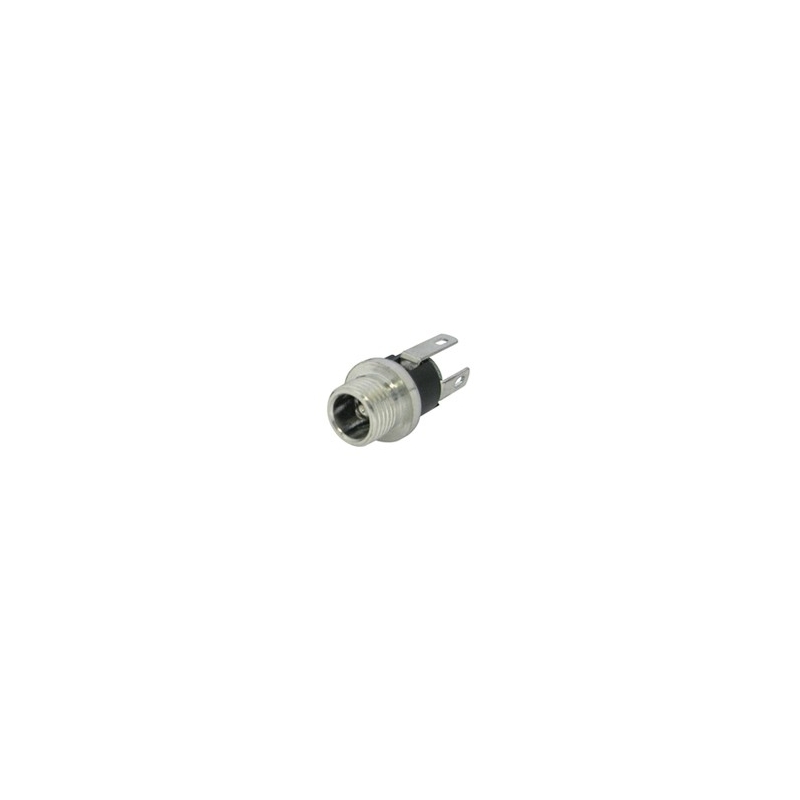

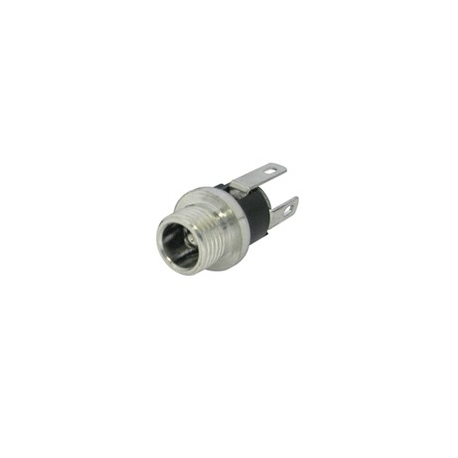

DC Jack Solder Terminals

DC-025M

Nuevo

2.1mm x 5.5mm DC Jack Power Socket / Panel Mounted (8.0mm Panel Cut Out) / Solder Terminals / Supplied with 1 x Fixing Nut and 1 x Washer / 3A 30VDC / RoHS / DC-025M.

Más detalles

444 artículos

£0.79 Ex VAT

£0.95   Tax incl.

Añadir a mi wishlist

Volume discounts

QuantityPriceYou Save
500 £0.38 Up to £205.40
100 £0.42 Up to £36.87
50 £0.46 Up to £16.33
25 £0.53 Up to £6.58

Data sheet

Panel Cut Out8.0mm
FixingScrew
TerminationSolder Terminals

More info

High quality DC jack socket to fit 8mm to 8.5mm panel cut outs. 3A 30V DC rating to suit most standard applications. This model features a centre pin 2.1mm diameter and internal diameter of 5.5mm. Complies with RoHS. Please download the drawing for full technical information.

Prices

1-2425-4950-99100-499500 +
£0.79£0.53£0.46£0.42£0.38
