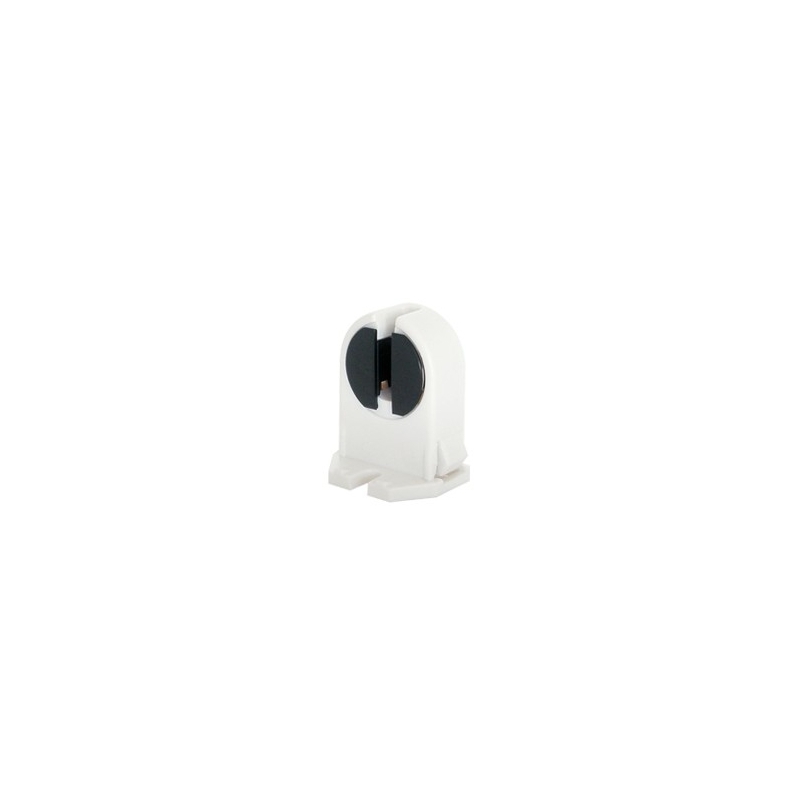

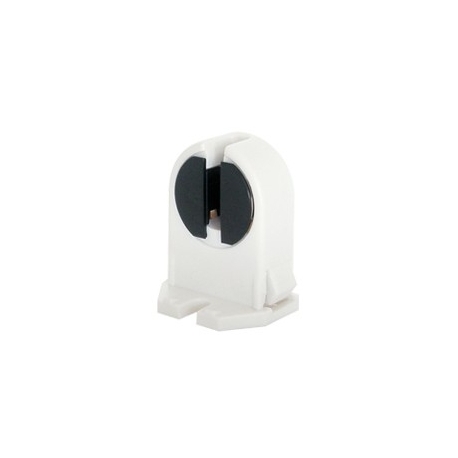

Fluorescent Lampholder - T5

G5-F288/E1

Nuevo

Lampholder / G5 Push Through for T5 / Surface Mount Fixing / PC Body / PBT Rotor / Phosphor Bronze Contacts / VDE / 2A 250Vac / T110 / RoHS / G5-F288/E1.

Más detalles

1515 artículos

£0.60 Ex VAT

£0.72   Tax incl.

Añadir a mi wishlist

Volume discounts

QuantityPriceYou Save
500 £0.30 Up to £150.00
100 £0.34 Up to £26.00
50 £0.37 Up to £11.50
25 £0.42 Up to £4.50

Data sheet

FittingG5
Lamp Centre15.8mm (Through Hole) or 18.7mm (Screw Fixing)
Lamp TypeT5
MountingThrough Hole (Snap In) and Screw Fixing

More info

High quality T5 fluorescent lampholder for surface mount screw fixing or push through fixing. Panel cut out for push through fixing is 20.0mm x 10.0mm for panels with a thickness of 0.6mm to 1.2mm. This lampholder features push wire terminals for quick installation. 2A 250Vac rated and T110 temperature rated and carrying VDE approval. Lamp axis is 15.8 or 18.7mm dependant on the choice of mounting. Complies with RoHS.

Prices

1-2425-4950-99100-499500 +
£0.60£0.42£0.37£0.34£0.30
