Interruptore de Aislamiento de la Batería 300A IP66

SFCBS-300-202

Nuevo

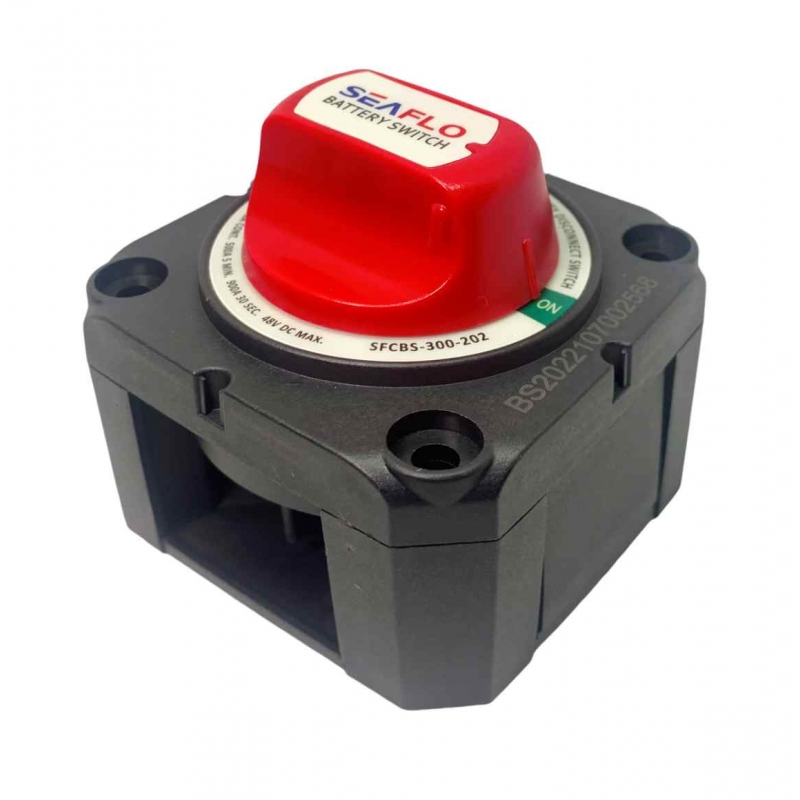

Heavy duty marine battery isolator switch with screw and clamp termination. Removable side break out panels for easy installation. Rated at 300A 32V DC continuous current and 900A 48V DC cranking current with 500A intermittent rating. Switching positions on and off. CE and TUV approved. Waterproof to IP66 and also featuring ignition protection (UL 1500 & SAE J1171).

Más detalles

32 artículos

£18.00 Ex VAT

£21.60   Tax incl.

Añadir a mi wishlist

Data sheet

Voltage48V
Current Rating300A 48V DC Continuous
IP RatingIP66

More info

A high quality battery isolator switch for camper van, motor home, car or marine use. This battery isolator switch is designed to cut off the power to the battery quickly in the event of an emergency or to ensure no unexpected power draw from the battery during vehicle storage.



RoHS compliant and carrying CE approvals and ignition protection. Supplied with identification labels to help identification.



Footprint size is 72.5mm x 72.5mm with 4 x mounting hole centres of 55.25mm.

Termination : M10 Nut and Stud x 3

Comes with 3 breakout panels and one side exposed
