Micro Switch

Modelo MS4-16DA-D

Condición Nuevo

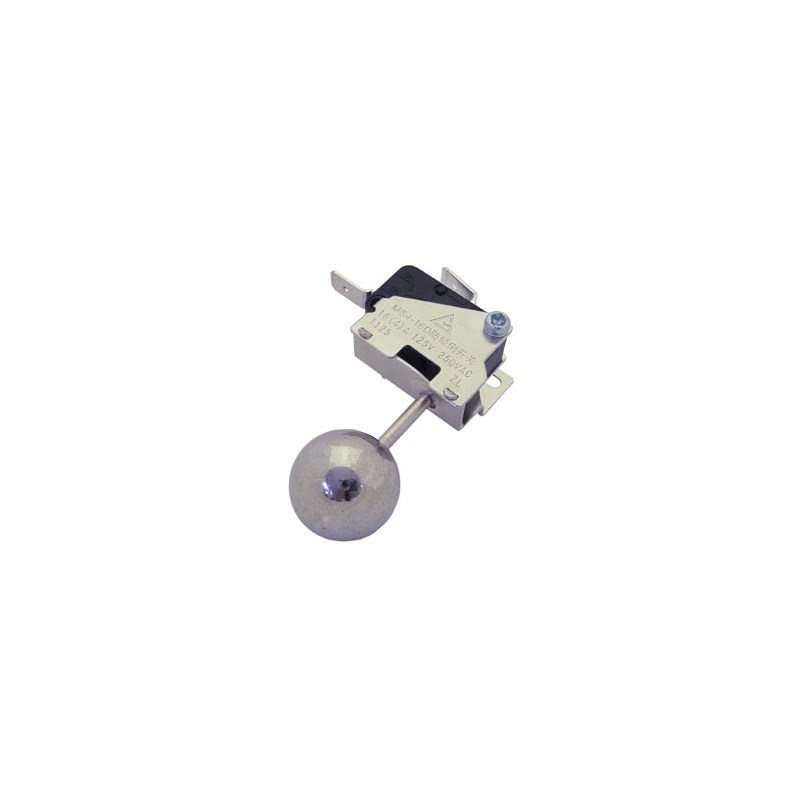

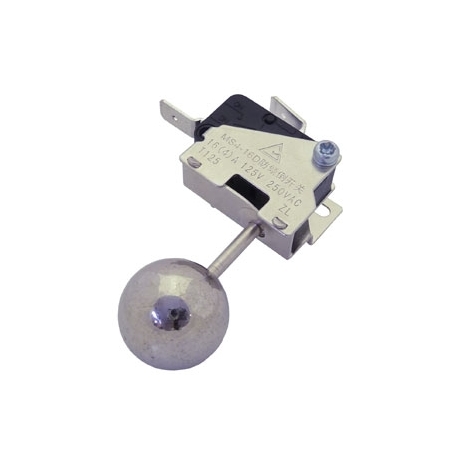

Safety Cut Out Pendulum Switch / Snap Action Switch / SPST / On-(Off) NC / 16(4)A 250Vac / 6.3mm QC Terminals / 20mm Steel Ball (33g) Pendulum Weight and Bracket / UL CUL KEMA ENEC / RoHS / MS4-16DA-D.

Más detalles

Este producto ya no está disponible

Avísame cuando esté disponible

Imprimir

Volume discounts

Quantity	Price	You Save
500	£0.85	Up to £825.00
100	£0.95	Up to £155.00
50	£1.05	Up to £72.50
25	£1.18	Up to £33.00

Data sheet

Colour	Black
Circuit	(Off)-On
Fixing	Screw
Termination	6.3mm QC Terminals
Current Rating	16A

More info

High quality safety cut out pendulum switch incorporating micro switch. 16A 250V AC rating to suit most standard applications. Momentary Off, On, single pole single throw (SPST) function. This safety cut out switch has a 33g steel weight to allow operation as a pendulum.

This safety cut out switch is designed to ensure that an appliance will turn off if the appliance turns on it's side. Typical applications are ; electric fans, electric heaters.

Carries ENEC (European) and UL (American) approvals and complies with RoHS.
