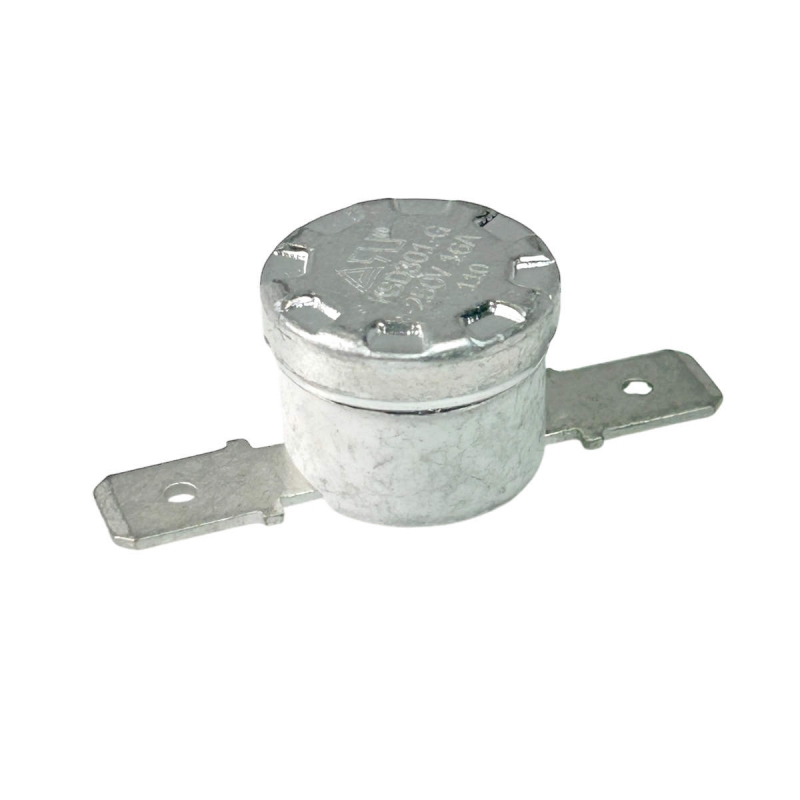

Thermostat 70ºC N/O

KSD301B-70AF-G

Nuevo

Bimetallic Switch (Thermal Cut Out) / Surface Mount / 1/2" / Auto Reset / 250V 16A / N/O / Tolerance 3-4 Degrees C / Loose Bracket Type U / 6.3mm Horizontal Term / 70deg.C Normally Open Thermal Switch / Circuit is Closed on Temperature Rise at 70deg.C / Reset Temperature 50-55 Degrees / VDE / RoHS / KSD301B-70A-UF2-B.

Más detalles

808 artículos

£1.95 Ex VAT

£2.34   Tax incl.

Volume discounts

QuantityPriceYou Save
600 £0.67 Up to £767.99
200 £0.76 Up to £238.02
50 £0.88 Up to £53.50
25 £1.03 Up to £23.00

Data sheet

Termination6.3mm QC Terminals
Current Rating16A
Switching Cycles100,000
Cap MaterialAluminium
Body MaterialCeramic
Contact ResistanceLess Than 50 m Ohm
SeriesKSD301-G
Maximum Ambient Termperature185 Degrees C

More info

Bimetallic Switch (Thermal Cut Out) / Surface Mount / 1/2" / Auto Reset / 250V 16A / N/O / Tolerance 3-4 Degrees C / Loose Bracket Type U / 6.3mm Horizontal Term / 70deg.C Normally Open Thermal Switch / Circuit is Closed on Temperature Rise at 70deg.C / Reset Temperature 50-55 Degrees / VDE / RoHS / KSD301B-70A-UF2-B.

Prices

1-2425-4950-199200-599600 +
£1.95£1.03£0.88£0.76£0.67
