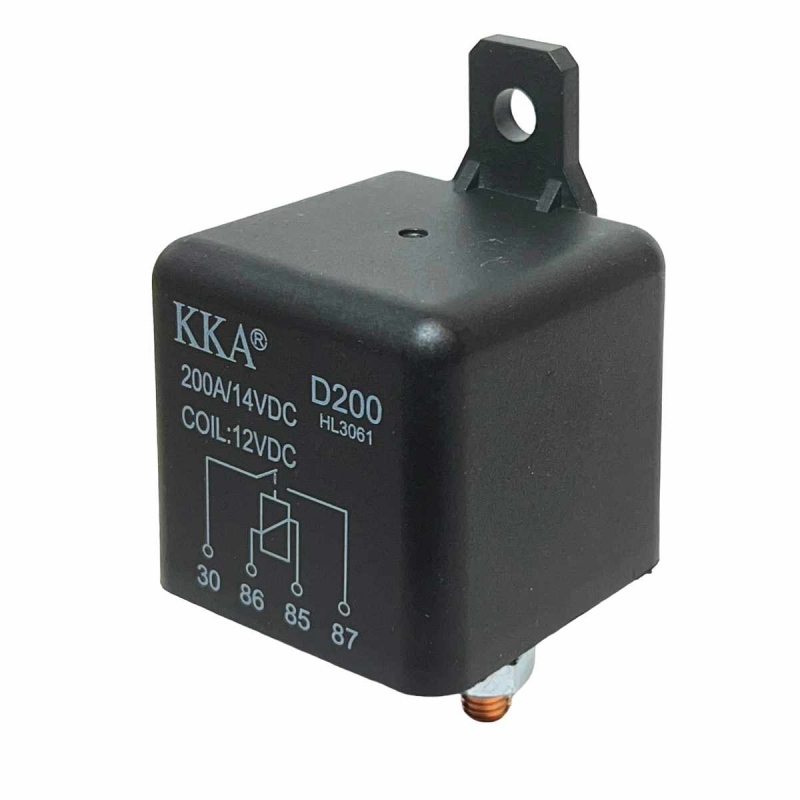

Heavy Duty Automotive Relay, 200A 12V

KKA-D200

Nuevo

Heavy duty make and break relay suitable for high current applications such as split charging and winching. Normally open with 4 terminals and rated at 200A 14Vdc.

Más detalles

53 artículos

£7.95 Ex VAT

£9.54   Tax incl.

Volume discounts

QuantityPriceYou Save
100 £4.10 Up to £385.02
50 £4.65 Up to £165.00
25 £5.20 Up to £68.75
10 £5.74 Up to £22.10

Data sheet

Voltage12V
ColourBlack

More info

Current : 200A 14Vdc (15.6V max.)

Terminals : 2 x M6 Stud Terminals (x2) with Nut and Shake Proof Washer (30 & 87)

Solenoid Terminals : 2 x 6.3mm QC Terminals (85 & 86)

Dimensions : 44mm x 44mm x 45mm (without terminals)

Approvals : CE

Applications : car, van, marine, caravan, camper van etc.

Prices

1-910-2425-4950-99100 +
£7.95£5.74£5.20£4.65£4.10
