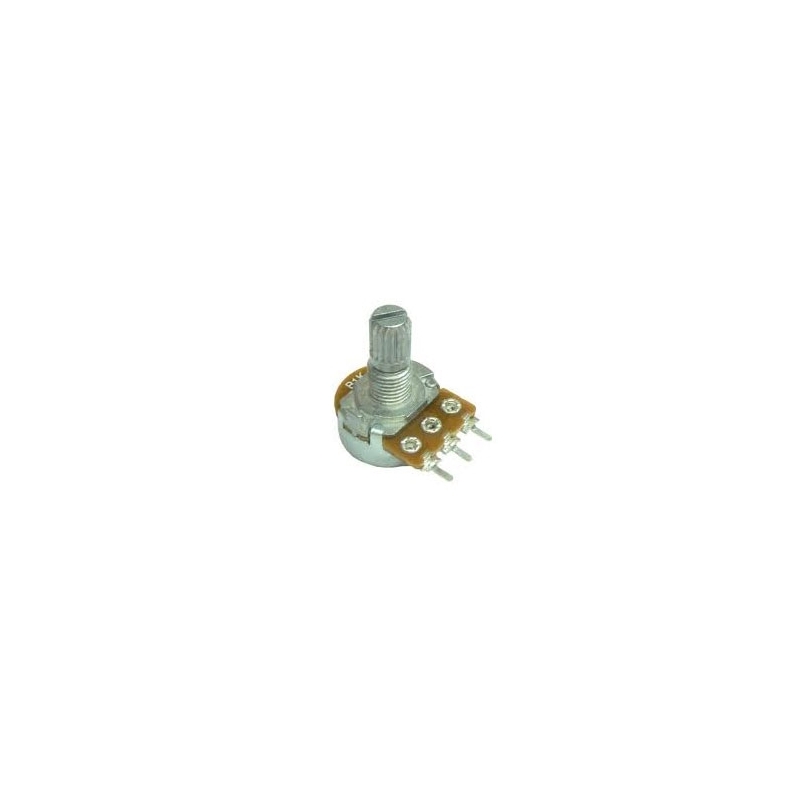

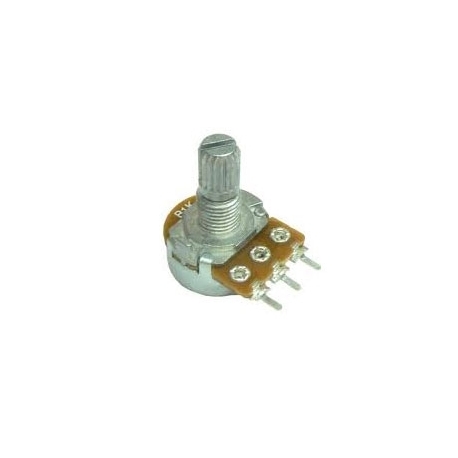

16mm 100K Ohm Log Pot

16K1-A-100K

Nuevo

Potentiometer Rotary / 16mm / Knurled Metal Shaft / 20mm Long Shaft (6mm Diameter) / Single Pole / Horizontal / Bushing Length 6.5mm / PCB Terminals / 20% Tolerance / 100K Ohm Resistance / Logarithmic Taper / RoHS / 16K1-A-100K-L20-KC.

Más detalles

217 artículos

£0.85 Ex VAT

£1.02   Tax incl.

Añadir a mi wishlist

Volume discounts

QuantityPriceYou Save
500 £0.26 Up to £294.99
100 £0.29 Up to £56.00
50 £0.32 Up to £26.50
25 £0.37 Up to £12.00

Data sheet

TerminationPCB Terminals

More info

High quality 16mm 100K Ohm logarithmic potentiometer from leading manufacturer Song Huei. Ideal for all types of audio products including radios and amplifiers. supplied with PCB terminals and 20mm long knurled metal shaft to suit most installations. This logarithmic potentiometer has a maximum 300 degree total rotation angle and 15,000 cycles rotational life, rated at 0.125W. Complies with RoHS.

Prices

1-2425-4950-99100-499500 +
£0.85£0.37£0.32£0.29£0.26
