SK22D13
New

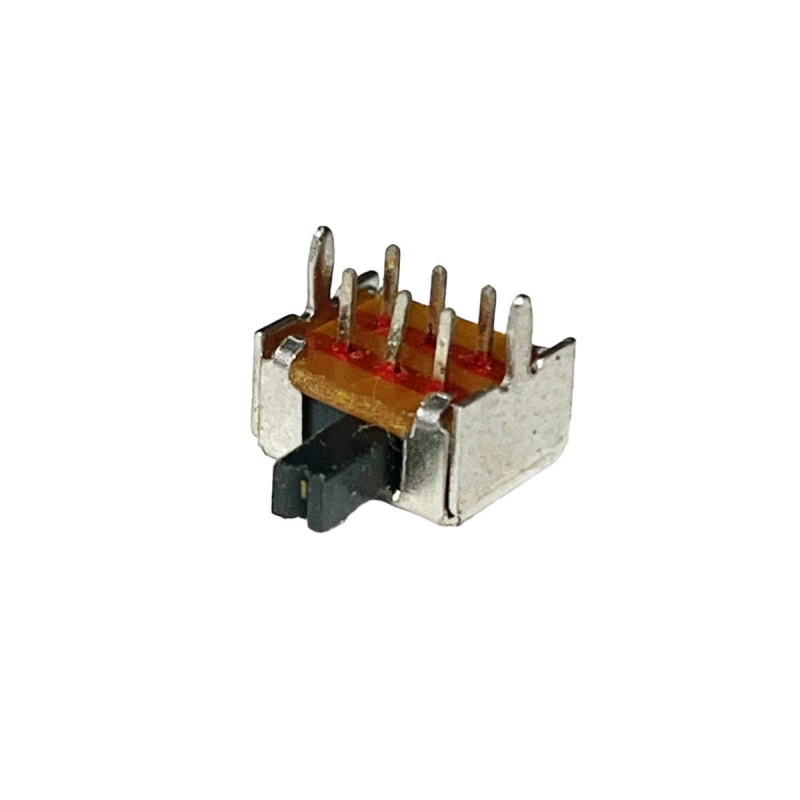

Ultra Miniature Slide Switch (6 Terminals) / Shorting / 2 Position / DPDT / On-On / Right Angled PCB Terminals / 0.3A 50Vdc / RoHS / SK22D13.
786 Item in Stock
Warning: Last items in stock!
Availability date:
| Quantity | Price | You Save |
|---|---|---|
| 500 | £0.20 | Up to £73.50 |
| 100 | £0.22 | Up to £13.13 |
| 50 | £0.25 | Up to £5.25 |
| 25 | £0.27 | Up to £1.97 |
| Circuit | On-On |
| Termination | PCB Terminals |
High quality ultra miniature slide switch from leading manufacturer Honest Well for PCB mounting. On-On, double pole double throw function. This 2 position slide switch has straight PCB terminals. Complies with RoHS.
Dimensions : 8.6mm x 6.9mm x 7.5mm
Terminal Pitch : 2mm x 2.5mm
Actuator Height : 2.7mm with V Indent
Actuator Travel : 2mm
Actuator : Nylon
Frame : Steel
| 1-24 | 25-49 | 50-99 | 100-499 | 500 + |
|---|---|---|---|---|
| £0.35 | £0.27 | £0.25 | £0.22 | £0.20 |
