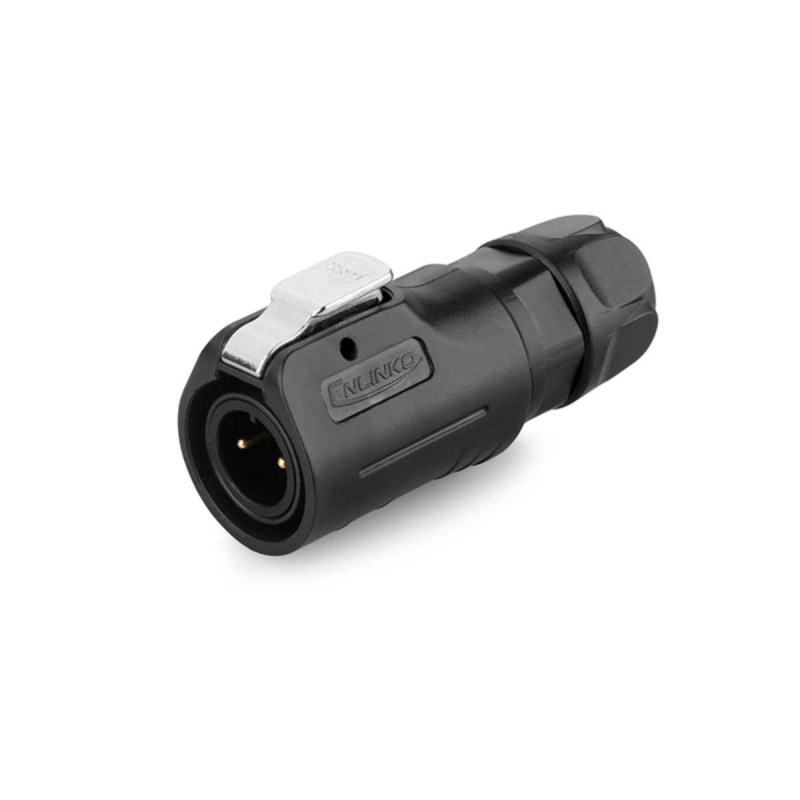

12mm IP67 Waterproof 2 Pole Plug Panel Mount Connector with Lock

LP-12-C02-2

New

Waterproof circular plug panel mount connector with an IP rating of IP67. This is a locking push in 2 pole connector with solder termination and rear cable gland for 3mm-6mm cables. Electrical rating of 5A 125V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.

More details

Currently out of stock, back in stock soon.

£4.54 Ex VAT

£5.45   Tax incl.

Features

ColourBlack
IP RatingIP67

More Info

IP Rating : IP67

Temperature Range : -25ºC to 80ºC

Materials : PBT and Chrome Plated Zinc

Seal Ring : Silicone

Electrical Contacts : Gold Plated Copper

Contact Resistance : 5.0 mΩ

Dimensions : 46.5mm x 23mm

Termination : Solder

Wire Range : 20 AWG (0.5mm2)

Cable Gland : 3-6mm Cables

Certification : UL, CE, RoHS



Typical applications include; solar energy, garden, outdoor, internal and external cabling, marine applications, stage and lighting, medical.
