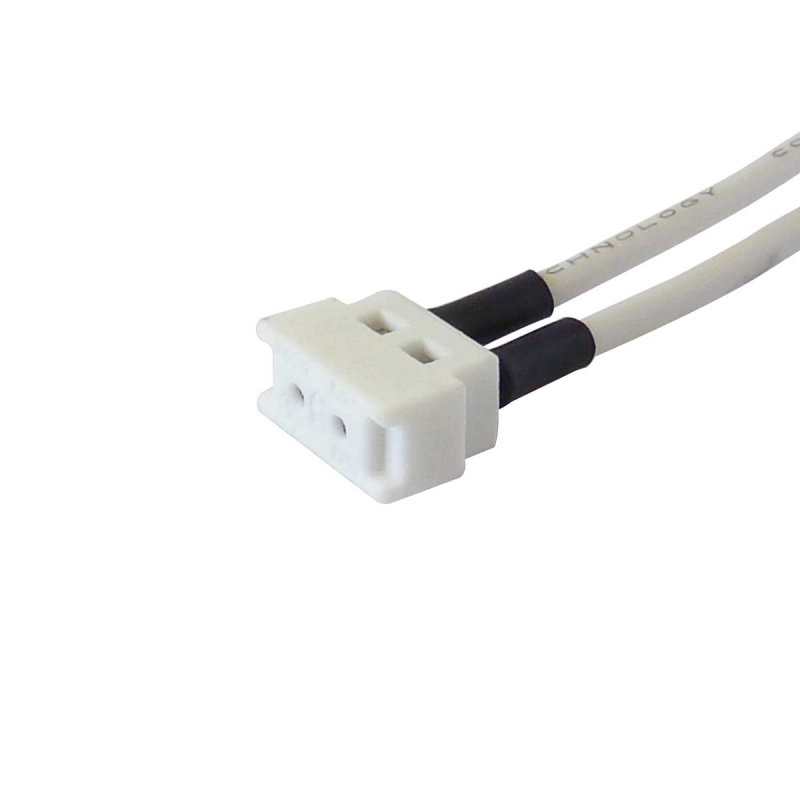

G4 Ceramic Lamp Holder - Sub Panel Mount

Part Number K507B

Condition New

G4 low voltage ceramic lamp holder for sub panel mount fixing into 3.6 x 9mm recesses. Rated for applications of up to 5A 24V with temperature rating of up to 250 degrees (T250). Supplied with 200mm of 0.75mm2 single insulated Silicone wire (VDE) with ends stripped to 8mm. The wire is rated T180 degrees. Approvals include UL and VDE and compliant with RoHS.

More details

1388 Item in Stock

Quantity Discounts (see below for price breakdown)

Quantity	Price	You Save
500	£0.31	Up to £345.00
100	£0.35	Up to £65.00
50	£0.39	Up to £30.50
25	£0.44	Up to £14.00

Features

Fixing	Snap In
Termination	Wire Leads
Current Rating	5A
Wire Length	200mm

More Info

This low voltage G4 lamp holder has a ceramic base and is supplied with 200mm Silicone insulated high temperature wires, stripped to 8mm and suitable for up to 180 degrees celcius. Body is rated up to 250 degrees celcius. Rated at 5A 25V and suitable for up to 50W, ideal for use with LED lamps, low voltage halogen and dichroic lamps. Sub panel mount fixing. RoHS compliant and carrying UL and ENEC approvals.

Suitable for G4 bulbs.
