0717-1S-14N
New

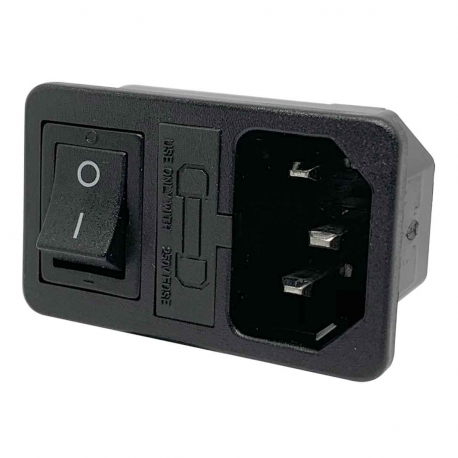

Fused & Switched IEC Connector / EN60320 C14 / 10A 250Vac / 5 x 20 Fuseholder / 0 - Printed DPST Rocker Switch / Snap In / 1.4mm Panel Thickness / 4.8mm Solder Terminals / UL, VDE / RoHS / 0717-1S-14N.
537 Item in Stock
Warning: Last items in stock!
Availability date:
| Quantity | Price | You Save |
|---|---|---|
| 500 | £1.19 | Up to £434.97 |
| 100 | £1.43 | Up to £62.99 |
| 50 | £1.58 | Up to £24.00 |
| 25 | £1.73 | Up to £8.25 |
| Voltage | 240V |
| Colour | Black |
| Panel Cut Out | 47mm x 28mm |
| 0 - | |
| Circuit | On-Off |
| Fixing | Snap In |
| Termination | 4.8mm QC Terminals |
| Flame Retardancy | UL94 V0 (Higher) |
| Panel Thickness | 1.4mm |
| Current Rating | 10A |
High quality fused C14 IEC connector from leading manufacturer Inlaways to fit the standard 47mm x 28mm panel cut out. This version features 4.8mm quick connect termination, integrated fuse holder and a double pole 240V rocker switch. European rating is 10A 250V AC and 15A 125Vac US rating to suit most standard applications. Manufactured from UL 94V-0 thermoplastic for safety. Carries VDE (European) and UL (American) approvals and complies with RoHS.
| 1-24 | 25-49 | 50-99 | 100-499 | 500 + |
|---|---|---|---|---|
| £2.06 | £1.73 | £1.58 | £1.43 | £1.19 |
