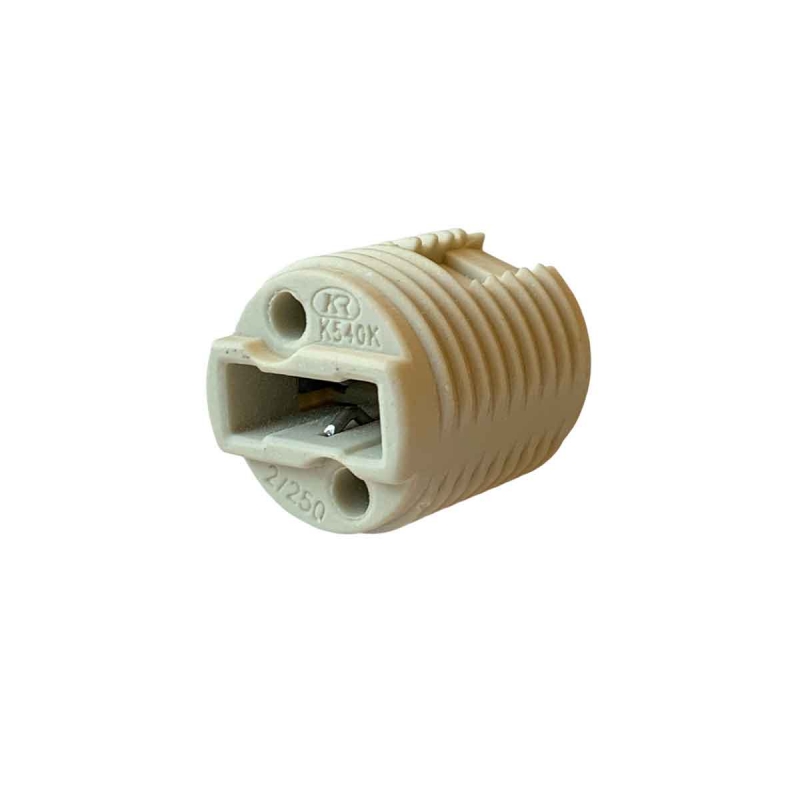

G9 Ceramic Lamp Holder Insert with Threaded Body

K540K1

New

G9 mains voltage ceramic lamp holder insert with threaded body. Rated for applications of up to 2A 250V with temperature rating of up to 250 degrees (T250). Push pin termination for 0.5mm to 1.0mm wires. Approvals include UL and ENEC and compliant with RoHS.

More details

814 in Stock

£1.00 Ex VAT

£1.20   Tax incl.

Quantity Discounts (see below for price breakdown)

QuantityPriceYou Save
500 £0.46 Up to £270.00
100 £0.52 Up to £48.00
50 £0.57 Up to £21.50
25 £0.64 Up to £9.00

Features

FixingScrew
Current Rating2A

More Info

This mains voltage G9 lamp holder has a ceramic threaded base and can be used with our G9 bracket (RWZJ126) and G9 lamp holder ring (K540K). Body is rated up to 250 degrees celcius. Rated at 2A 250V and suitable for up to 500W, ideal for use with LED lamps, and halogen lamps. RoHS compliant and carrying UL and ENEC approvals.



Suitable for G9 bulbs.

Dimensions : 20.8mm (Diameter) x 23.3mm (Depth)

Termination : 2 x Push Pin terminals

Fixing : M3 Screw

Prices

1-2425-4950-99100-499500 +
£1.00£0.64£0.57£0.52£0.46
